● Height: 28.0±1mm ● Finish: CP/ED

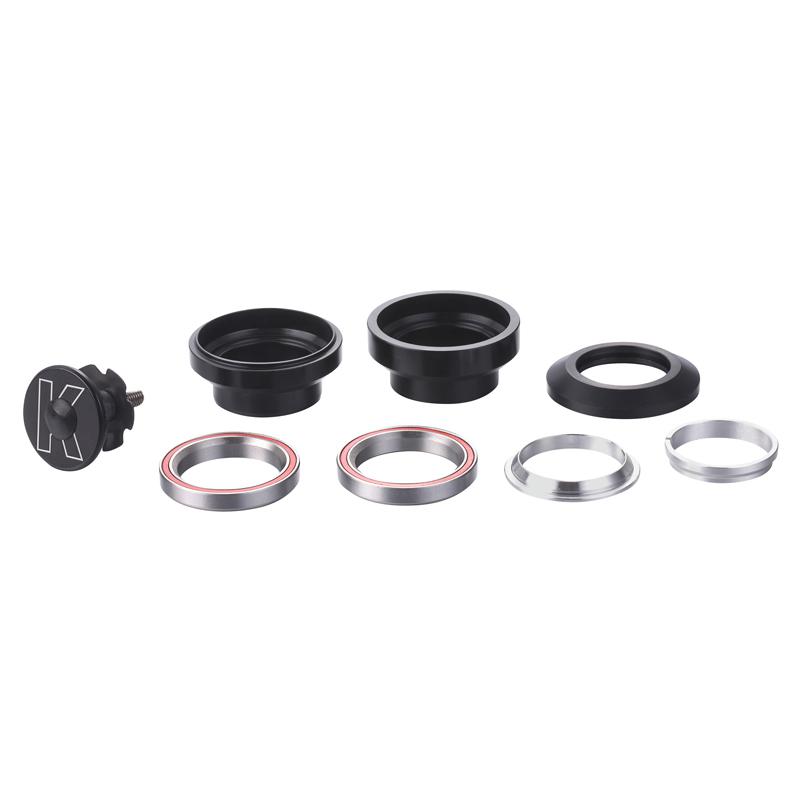

| NO | PART NAME | MATERIAL | SPECIFICATION | Q'TY |
| 1 | Start Nut | Alloy 6061 | 1-1/8'' | 1 |
| 2 | Upper Cover | Alloy 6061 | 28.6mm | 1 |
| 3 | Compress Ring | Alloy 6061 | 28.6mm | 1 |
| 4 | Bearing | G-Cr15 | 41 X 30.15 X 7 mm x 45° | 2 |
| 5 | Top Cup | Carbon Steel | ?34mm | 1 |
| 6 | Lower Cup | Carbon Steel | ?34mm | 1 |
| 7 | Lower Cone | Carbon Steel | ?34mm | 1 |
