● Height: 26.0±1mm ● Finish: CP/ED

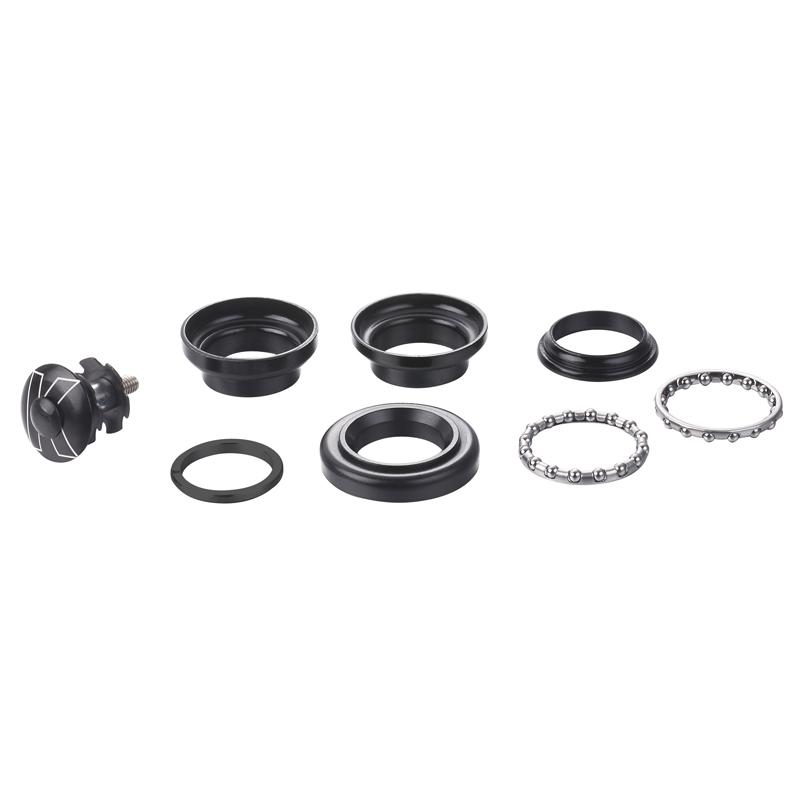

| NO | PART NAME | MATERIAL | SPECIFICATION | Q'TY |
| 1 | Start Nut | Alloy 6061 | 1-1/8'' | 1 |
| 2 | Washer | Steel | 2mm | 1 |
| 3 | Compress Ring | Nylon | － | 1 |
| 4 | Top Cone | Carbon Steel | 1-1/8'' | 2 |
| 5 | Ball Retainer | Carbon Steel | 5/32'' X 22 | 2 |
| 6 | Cup | Carbon Steel | ?34mm | 1 |
| 7 | Seal Ring | Nylon | － | 1 |
| 8 | Lower Cone | Carbon Steel | ?30mm | 1 |
