● Height: 10.0±1mm ● Finish: Anodizing

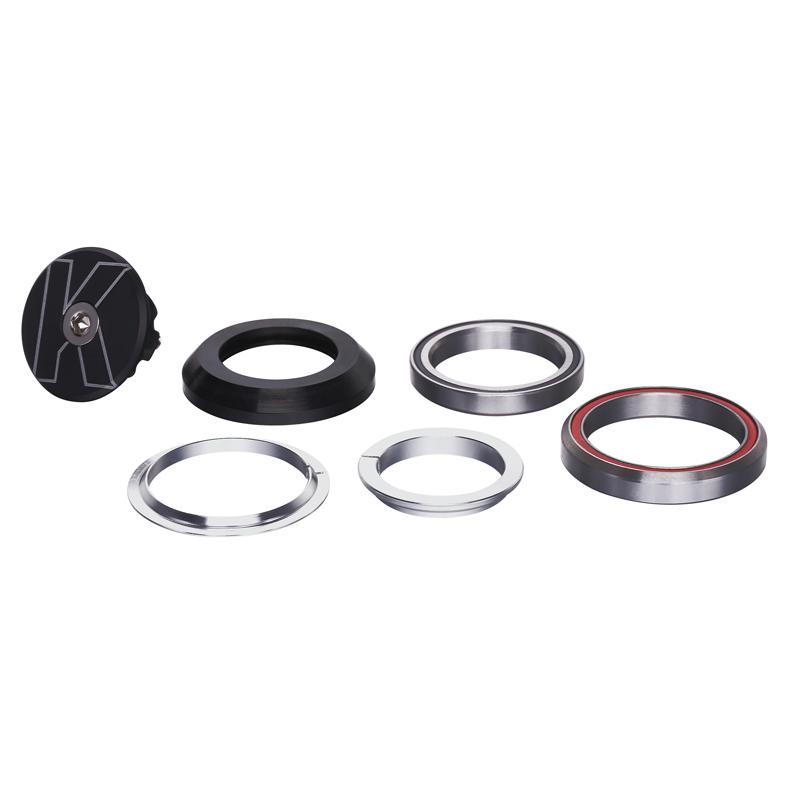

NO | PART NAME | MATERIAL | SPECIFICATION | Q'TY |
1 | Start Nut | Alloy 6061 | 1-1/2'' | 1 |
2 | Upper Cover | Alloy 6061 | 31.8mm | 1 |
3 | Compress Ring | Alloy 6061 | 31.8mm | 1 |
4 | Bearing | G-Cr15 | 47X35X7mmX45° | 1 |
5 | Bearing | G-Cr15 | 52X40X8mmX45° | 1 |
6 | Lower Cone | Alloy 6061 | ?39.8mm | 1 |
