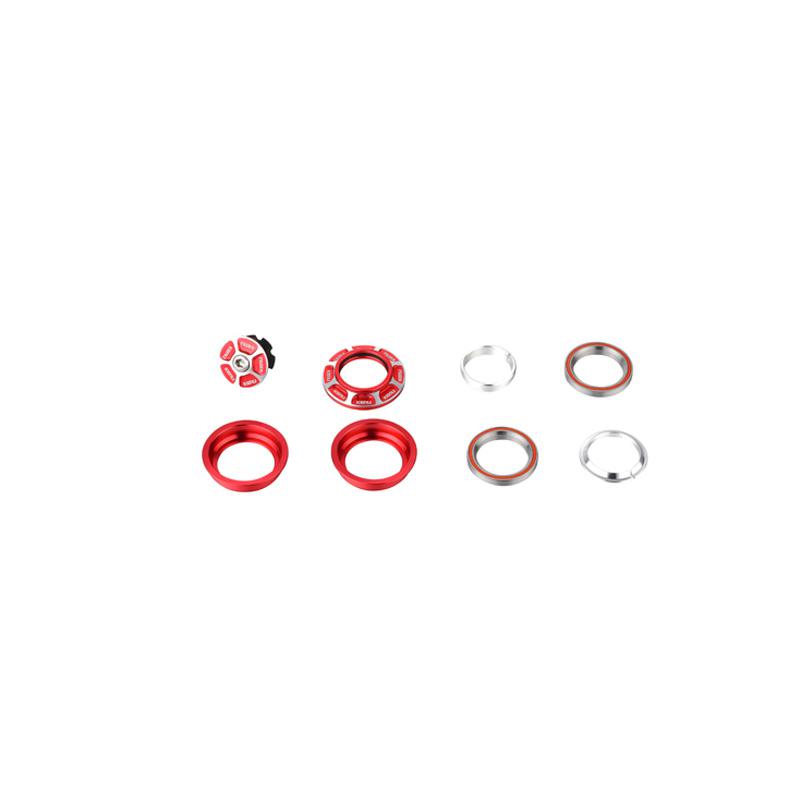

KL-B312
NO | PART NAME | MATERIAL | SPECIFICATION | Q'TY |
1 | Start Nut | Alloy 6061 | 1- 1/8'' | 1 |
2 | Upper Cover | Alloy 6061 | 28.6mm | 1 |
3 | Compress Ring | Alloy 6061 | 28.6mm | 1 |
4 | Bearing | G-Cr15 | 41 X 30.15 X 6.5mm X 45° | 2 |
5 | Cup | Alloy 6061 | ?44mm | 2 |
6 | Lower Cup | Alloy 6061 | ?30mm | 1 |
